50 to 400 Hz meter electric energy mini CT with dc immunity accuracy 0.1 0.2
Our main product are miniature voltage transformer ,miniature current transformer ,instrument current transformer , clamp on ccurrent transformer ,split core current transformer ,three phase current transformer ,zero-flux current transformer

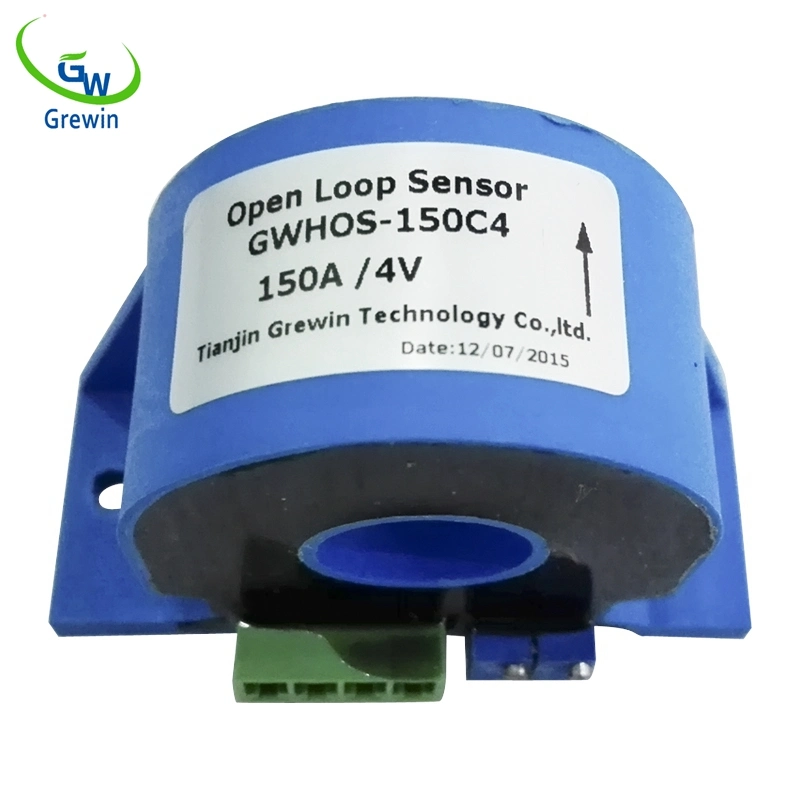

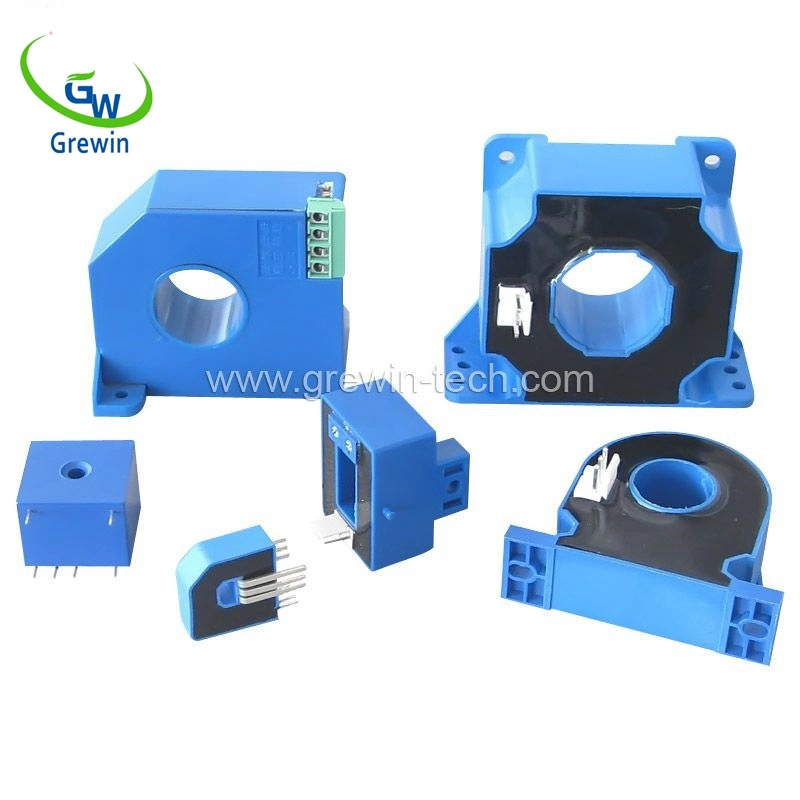

Pic of product
| Without DC Immunity Mini Current Transformer(specifications) | |
| Exterior Material | PBT Resin UL flame retardant rating 94-V0 |
| Interior Insulation | Epoxy Encapsulated |
| Isolation Voltage | 2500 Vrms for 1 minute |
| Dielectric Resistance | 1000 M Ohms @ 500 Vdc |
| Surge Withstand | 5000V(1.2/50μs standard shock wave)optional |
| Rated Load Resistance | 100K Ohms |
| Operating Temperature | -25 to +55ºC,-40 to +85ºCoptional |
| Frequency | 50 to 400 Hz |
| Accuracy Class | defined in IEC 60044-1 Part 1 Voltage Transformers Class 0.1 0.2 |
| Certification | RoHS Compliant CE Approved |
| Without DC Immunity Mini Current Transformer(features) |
| Low cost |
| More than 50 standard sizes |
| Small size |
| High accuracy,wide linear range,good consistency |
| Terminal: PCB Mounted or Lead |
| Toroidal Nanocrystalline and Nickel Alloy cores available |
| Without DC Immunity Mini Current Transformer(applications) |
| For applications that require exceptional accuracy with minimal phase angle error |
| Applications would include watt-hour metre ect. electric energy measurement device |
Designing model
Typical Products
| Part Number | IN [Arms] | Imax [Arms] | Iref [Arms] | Accu- racy class | Rcu [] | Rb [] | Outline Dimen- sions (mm) | |
| GWTAD014-5(20)A /2mA | 5 | 20 | 15 | 0.2 | < 3% | 120±10% | 12.5 | ID-OD-H 5 -26-16 |
| GWTAD014- 10(40)A/4mA | 10 | 40 | 30 | 120±10% | ||||
| GWTAD016- 10(60)A/4mA | 10 | 60 | 45 | 110±10% | ID-OD-H 9.5-28.5-16.5 | |||
| GWTAD016- 20(80)A/8mA | 20 | 80 | 60 | 110±10% | ||||
| GWTAD020- 20(100)A/8mA | 20 | 100 | 75 | 90±10% | ID-OD-H 13.5-35.5-14.3 | |||
| GWTAD020- 20(120)A/8mA | 20 | 120 | 85 | 90±10% | ||||
| GWTAD22D- 10(60)A/4mA | 10 | 60 | 45 | 110±10% | ID-L-W-H 8-29.7-18.8-30 | |||
| GWTAD22D- 20(80)A/8mA | 20 | 80 | 60 | 110±10% | ||||
| GWTAD22E- 20(100)A/8mA | 20 | 100 | 75 | 90±10% | ID-L-W-H 12.8-36.7-14.2-39 | |||
| GWTAD22K-20(80)A /8mA | 5 | 80 | 60 | 105±10% | ID-OD-H 8-39-22.2 |
