Features:

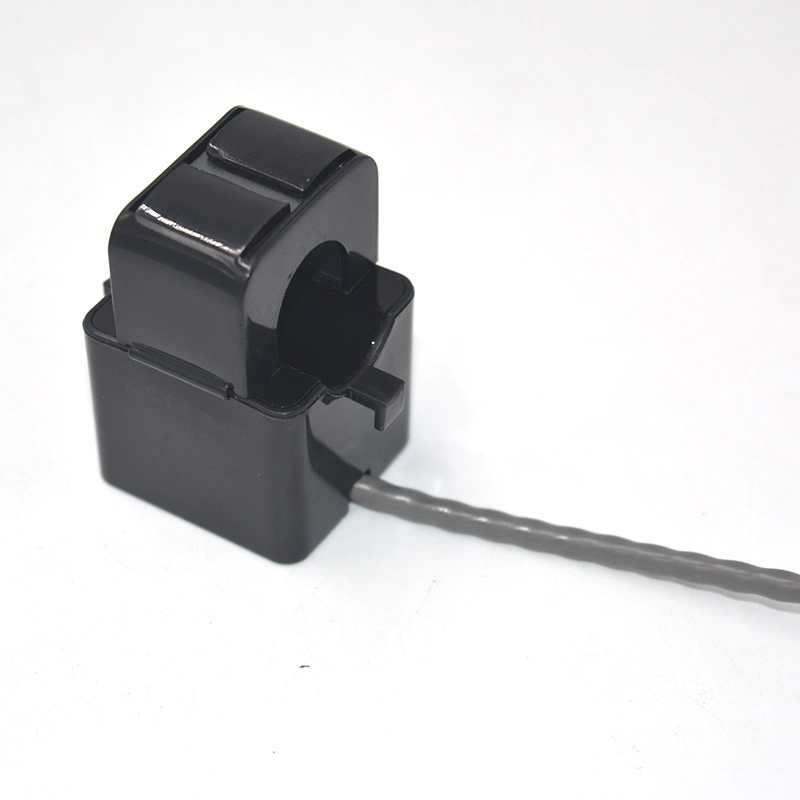

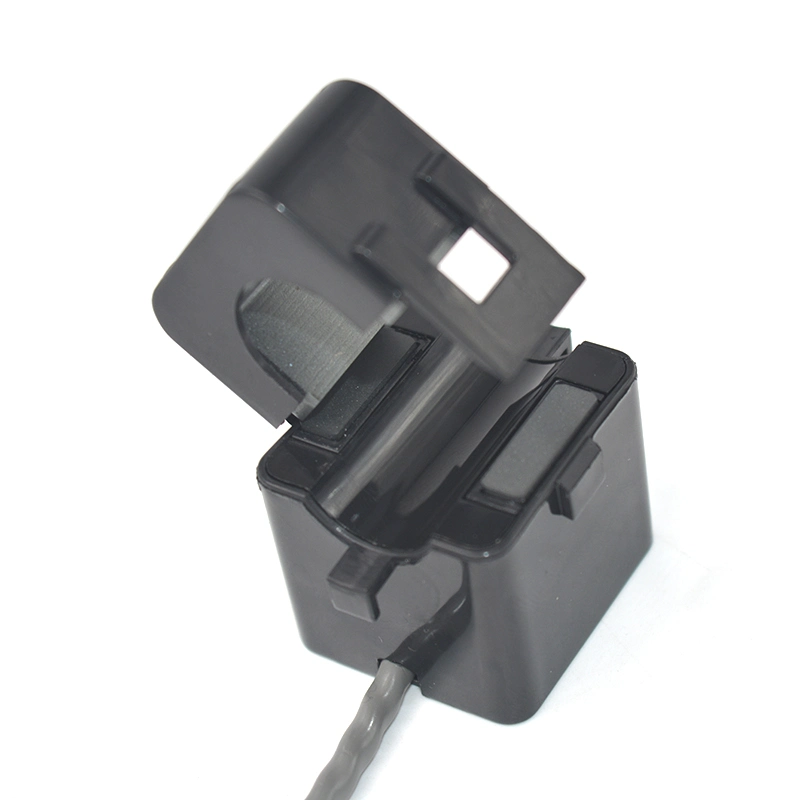

ECS16100-2 is split core current transformers. This CT can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage. Can be mounted without removing existing cables for easier installation.
Specifications:
Rated Primary Current(Amp.) 50/60Hz: 100nom(1~120A max)
Max. Current (continuous): 300A
Turnn ratio: Np:Ns=1:2500
Current Ratio:100A/40mA
D.C.Resistance Max at 20 ºC: 220 Ω
Accuracy @R L <=10 Ω: 0.5%
Phase error at rated current range: <=1.5˚
Protection Level: 10 V O (peak)
Operating Temperature Range (RL<=10 Ω): -40~65ºC
Storage Temperature Range: -45~85ºC
Dielectric Withstanding Voltage(Hi-pot): 2.5KV/1mA/1min
Impluse Withstand Voltage: 5KV Peak
Insulation Resistance: DC500V/100MΩ min
Temperature error of current ratio: <50ppm/K
Certificates:
UL Recognized / CE certificated / RoHs
Warranty:
5 years
Customized current ratio available:
ECS16100-2 is split core current transformers. This CT can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage. Can be mounted without removing existing cables for easier installation.
Specifications:
Rated Primary Current(Amp.) 50/60Hz: 100nom(1~120A max)
Max. Current (continuous): 300A
Turnn ratio: Np:Ns=1:2500
Current Ratio:100A/40mA
D.C.Resistance Max at 20 ºC: 220 Ω
Accuracy @R L <=10 Ω: 0.5%
Phase error at rated current range: <=1.5˚
Protection Level: 10 V O (peak)
Operating Temperature Range (RL<=10 Ω): -40~65ºC
Storage Temperature Range: -45~85ºC
Dielectric Withstanding Voltage(Hi-pot): 2.5KV/1mA/1min
Impluse Withstand Voltage: 5KV Peak
Insulation Resistance: DC500V/100MΩ min
Temperature error of current ratio: <50ppm/K
Certificates:
UL Recognized / CE certificated / RoHs
Warranty:
5 years
Customized current ratio available:
| Model | Input Current | Outputs |
| ECS16-50 | 50A | current outputs @ 20mA, 33.3mA, 40mA, 50mA, 100mA, 1A voltage outputs @0.25V, 0.333V, 0.5V, 1V, 2V |
| ECS16-80 | 80A | |
| ECS16-100 | 100A | |
| ECS16-120 | 120A | |
| ECS16-150 | 150A |
