0.333V Current Transformer and Split Core Transformer

Product Description0.333-3.53V  split core current transformer with core currentTIANJIN GREWIN TECHNOLOGY CO.,LTD.GWCTSA series split core current transformer  Part numberRated input(A)Second output(V)Accuracy classLimit primary current(A)Accuracy classFrequency(Hz)OutlineDimensions ID-L-W-H(mm)Unit weightTur

Featured Products

Product Description

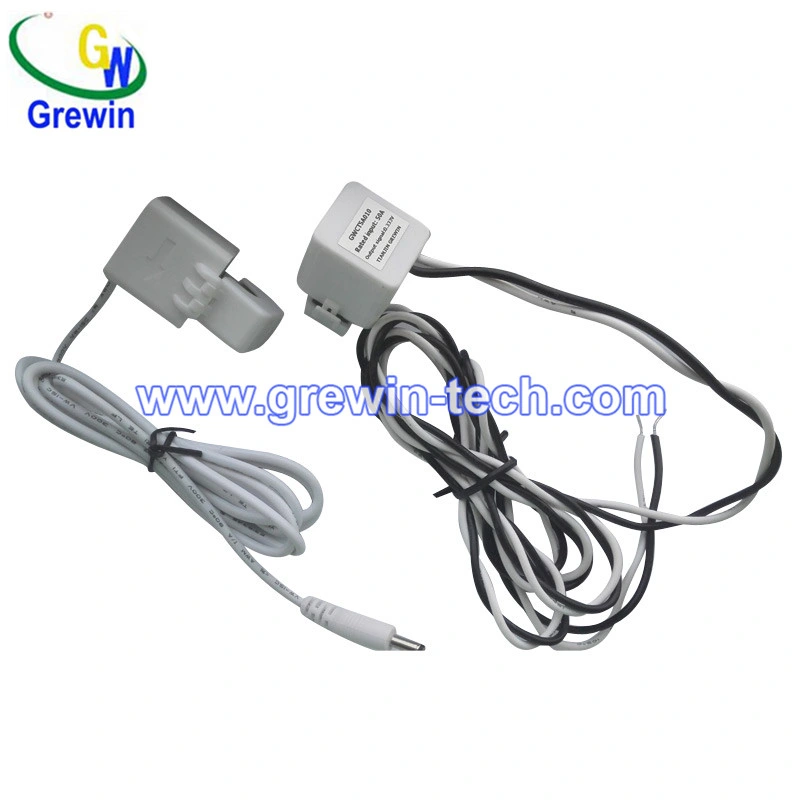

0.333-3.53V  split core current transformer with core current5-600A 0.333V Split Core Current Transformer
TIANJIN GREWIN TECHNOLOGY CO.,LTD.
GWCTSA series split core current transformer
Part numberRated input(A)Second output(V)Accuracy classLimit primary current(A)Accuracy classFrequency(Hz)OutlineDimensions ID-L-W-H(mm)Unit weightTurn ratioOutput cable
GWCTSA0055  10  150.3331.0 3.0--50-4005.0-25.0-22.5-34.530g3000:1wire(1m)
GWCTSA0105,10,20,50,750.3331.0 3.01205P 10P50-40010-29.4-26.4-41.750g3000:1wire(1m)
GWCTSA01675,100,1500.3330.5 1.03005P 10P50-40016-36.9-39.2-52.9100g3000:1wire(1m)
GWCTSA024100,150,200,2500.3330.5 1.05405P 10P50-40024-51.2-47-70.2250g3000:1wire(1m)
GWCTSA035200,300,400,6000.3330.5 1.06005P 10P50-40035-65.8-51.2-83.5400g3000:1wire(1m)
5-600A 0.333V Split Core Current Transformer

GWCTSA Series Split Core Current Sensor (Specifications)

Rated Primary current

5-600A

Rated Secondary current

0.333V-3.53V

Rated load

1, 2.5, 5.0, 10, 30VA

Accuracy

0.5, 1.0, 3.0 Class

Rated Short-time thermal current (Ith)

20In

Rated Dynamic current (Idyn)

2.5Ith

Case Material

 UL flame retardant rating 94-V0

Highest Voltage for Equipment Um (rms)

720 Vac

Rated Power-Frequency Withstand Voltage(rms)

3,000 Vac

Frequency Range:

50/60Hz

Operating Temperature

 -15ºC to 50ºC

Standard

IEC 60044-1

Accessories

Supplied with feet for base mounting if required

Certification

RoHS compliant CE&ETL approved

GWCTSA Series Split Core Current Sensor  (Features)

Low cost

5 standard sizes

Split core design, safer, easier installation, and portable

GWCTSA Series Split Core Current Sensor  (Applications)

Measures AC current flow to electric motors, lighting, air condition equipment, etc.

Compatible with HVACtemperature control, power management, building

The GREWIN CTSA series of split core ct style current sensors are designed for fast and easy installation.The split core design permits non-contactcurrent measurements through magnetic field induction without disconnecting cables or busbar circuits for CT installation. This method permits a safer, easier and portable current measurement.
0.333-3.53V rated secondary output split core current transformer :
 5-600A 0.333V Split Core Current Transformer

Model No 1 :GWCTSA010
Ratio : 3000:1
Rated input: 5A 10A 20A 50A 75A
Accuracy class: 1.0s  3.0s
Rated primary current :120A
Protection: 5 times protection ,10 times protection like 25A 50A 100A 200A 250A 385A 500A 750A

Model No.2 :GWCTSA016
Ratio :3000:1
Rated input: 75A 100A 150A
Accuracy class: 0.5 1.0S
Rated accuracy limit primary current: 300A
Protection : 5 times Protection, 10 times protection
 5-600A 0.333V Split Core Current Transformer

Model No. 3:GWCTSA024
Ratio : 3000:1
Rated input: 100A 150A 200A 250A
Accuracy class: 0.5 1.0S
Rated accuracy limit primary current: 540A
Protection : 5 times Protection, 10 times protection

Model No.4:GWCTSA035
Rated input: 200A 300A 400A 600A
 Accuracy class: 0.5 1.0S
Rated accuracy limit primary current: 600A
Protection : 5 times Protection, 10 times protection
Frequency: 50--400Hz
5-600A 0.333V Split Core Current Transformer
5-600A 0.333V Split Core Current Transformer
