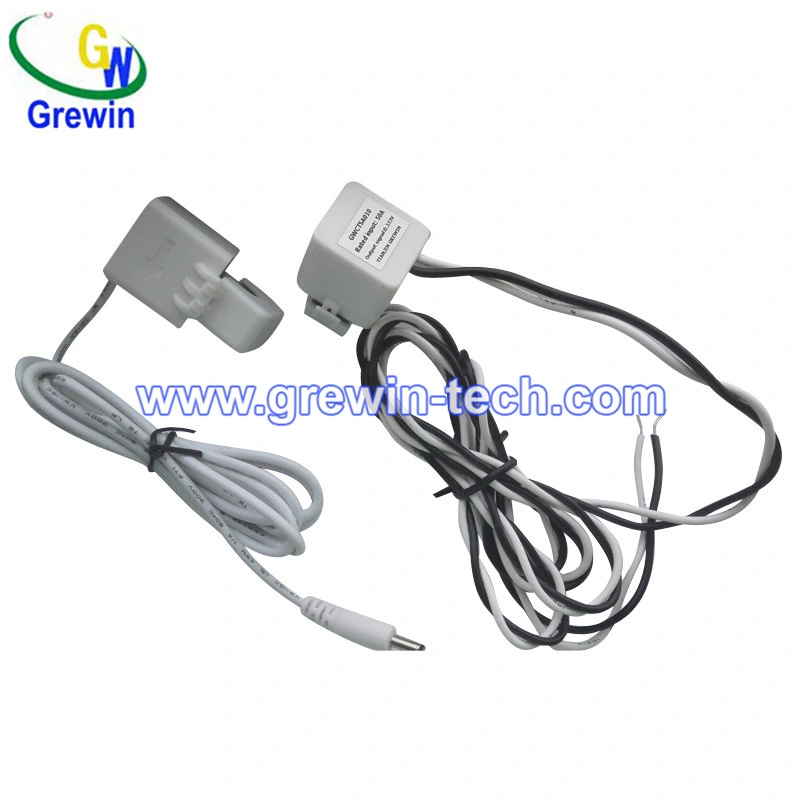

0.333-3.53V Split Core Current Transformer(PCT-0750/1250/2000/3000/T10/ T16/ T24/36)
Our main product are miniature voltage transformer ,miniature current transformer ,instrument current transformer , clamp on ccurrent transformer ,split core current transformer ,three phase current transformer ,zero-flux current transformer
Typical Products
Shipping:
1. Products are shipped via UPS / DHL / EMS / HK EMS / FedEx / TNT and so on expresses (door to door).
2. We Provide Drop shipping Service.
3. 20 days around delivery upon receiving payment if the qty is lower than 1000PCS and it is not customized products.
4. In order to ensure you receive your order tax free upon
import, we declare lower value.
5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.
Payment:
1. We accept Western Union and T/T
2. 30% deposit and 70% before shipping
3. No payment collection. We only can deliver goods after
geting full payment.
Warranty:
1. We provide 1 year warranty.
2. If the product is defective, please notify us within 3 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods
Our factory
Tianjin grewin technology co., ltd . is a high-tech company which integrates production, design, R&D, and sale.We-CHIPSEN-specialize in developing many kinds of electronic components. Include electronic transformers,
We are ISO 9001 and ISO 14001 certified and our products come with UL, SGS marks.
For more details, please contact us without hesitation.
WHY CHOOSE US?
Quality and honest first!
A. Flexible service for diffierent transformers with high efficiency perfor mance.
B. Over 40 years experience of transformer designing and producing.
C. 100% test of every single product we produce from incoming material checking.
D. UL, CE, ISO9001:2008
E. We offer custom-made transformers, OEM and ODM are welcome
F. We deliver the quality you expect at consistently competitive prices
G. Transformer quality lifetime:10 Years.
H. Specialty Sales service:5 -10 Years
Contact info:
Tianjin Grewin Technology Co., Ltd
Contact:Maggie
Website: http://transformer.en.made-in-china.com/
Our main product are miniature voltage transformer ,miniature current transformer ,instrument current transformer , clamp on ccurrent transformer ,split core current transformer ,three phase current transformer ,zero-flux current transformer
| GWSCCTSA Series Split Core Current Sensor 0.333 (Features) |
Low cost |
5 standard sizes |
Split core design, safer, easier installation, and portable |
GWSCCTSA Series Split Core Current Sensor (Applications) |
Measures AC current flow to electric motors, lighting, air condition equipment, etc. |
Compatible with HVACtemperature control, power management, building |
| GWSCCTSA Series Split Core Current Sensor (Specifications) | |
Rated Primary current | 5-600A |
Rated Secondary current | 0.333V-3.53V |
Rated load | 1, 2.5, 5.0, 10, 30VA |
Accuracy | 0.5, 1.0, 3.0 Class |
Rated Short-time thermal current (Ith) | 20In |
Rated Dynamic current (Idyn) | 2.5Ith |
Case Material | UL flame retardant rating 94-V0 |
Highest Voltage for Equipment Um (rms) | 720 Vac |
Rated Power-Frequency Withstand Voltage(rms) | 3,000 Vac |
Frequency Range: | 50/60Hz |
Operating Temperature | -15ºC to 50ºC |
Standard | IEC 60044-1 |
Accessories | Supplied with feet for base mounting if required |
Certification | RoHS compliant CE&ETL approved |
Typical Products
| Part Number | Ratio | Measuring | Protection | Frequency (Hz) | Outline Dimensions ID-L-W-H (mm) | ||||
| Rated Input | Accuracy Class | Rated Accuracy Limit Primary Current (A) | Accuracy Class | ||||||
| GWSCCTSA005 | 3000:1 | 5,10,15 | 1.0 3.0 | -- | -- | 50~400 | 5.0 -25.0-22.5-34.5 | ||
| GWSCCTSA010 | 5,10,20,50,75 | 1.0,3.0 | 120 | 5P,10P | 50~400 | 10 -29.4-26.4-41.7 | |||
| GWSCCTSA016 | 75,100,150 | 0.5,1.0 | 300 | 5P,10P | 50~400 | 16 -36.9-39.2-52.9 | |||
| GWSCCTSA024 | 100,150,200,250 | 0.5,1.0 | 540 | 5P,10P | 50~400 | 24 -51.2-47-70.2 | |||
| GWSCCTSA035 | 200,300,400,600 | 0.5,1.0 | 600 | 5P,10P | 50~400 | 35 -65.8-51.2-83.5 | |||
