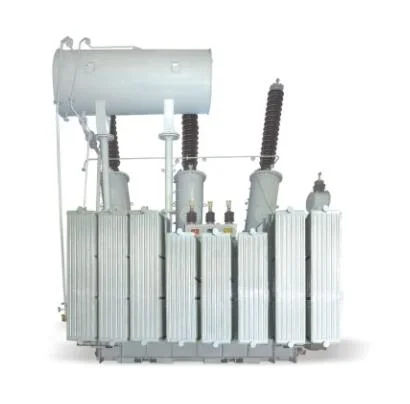

110kv Class Power Transformer Oil-Immersed Type Distribution Transformer
6300kVA ~ 180000kVA Three-phase Duplex-winding Non-field Excitation Changing Power Transformer
110kV Class Three-phase On-load tap-changing Electric Power Transformer
Specification of rectifier transformer could be customerized.
Frequently Asked Question (FAQ)
Q: About the company
A: Westhomes® is a professional manufacturer for low voltage and high voltage electrical products with a thirty-year history.
Main supplier of state-owned companies like China Stae Grid, China Southern Power Grid through bidding with bunches of test certificates, sales records and operation performance to support.
Enough investment for research and development for the products innovation.
Q: About Warranty
A: 18 months from the date of receivement
Q: About shipment method
A: Depends on the required quantity and delivery urgency, both international express like UPS / DHL / EMS / HK EMS / FedEx / TNT (door to door service) and normal sea shipping & air freight also avaliable.
Q: About MOQ
A: Upto the client
Q: About payment method
A: We accept T/T, Paypal, Western union, L/C. Normally 30% payment in advance, 70% before delivery.
Q:About ordering process
A: First to send an inquiry via made-in-china platform or directly to the contact e-mail address. All the following thing is the communication between us.
Contact
Ms Stephanie Huang
Senior Sales Manager
Add: Liushi Town, Yueqing City, Zhejiang Provine, China 325604
http://westhomes.en.made-in-china.com/
Mob: 0086-13868328363
6300kVA ~ 180000kVA Three-phase Duplex-winding Non-field Excitation Changing Power Transformer
| Rated capacity kVA | voltage combination | Connection symbol | no-load loss kW | load loss kW | Loading current % | Short circuit impedance% | |
| High voltage kV | Low voltage kV | ||||||
| 6300 | 110±2×2.5% 121±2×2.5% | 6.3 6.6 10.5 11 | YNd11 | 9.3 | 36 | 0.77 | 10.5 |
| 8000 | 11.2 | 45 | 0.77 | ||||
| 10000 | 13.2 | 53 | 0.72 | ||||
| 12500 | 15.6 | 63 | 0.72 | ||||
| 16000 | 18.8 | 77 | 0.67 | ||||
| 20000 | 22.0 | 93 | 0.67 | ||||
| 25000 | 26.0 | 110 | 0.62 | ||||
| 31500 | 30.8 | 133 | 0.60 | ||||
| 40000 | 36.8 | 156 | 0.56 | ||||
| 50000 | 44.0 | 194 | 0.52 | ||||
| 63000 | 52.0 | 234 | 0.48 | ||||
| 75000 | 13.8 15.75 18 20 | 59.0 | 278 | 0.42 | 12 ~ 14 | ||
| 90000 | 68.0 | 320 | 0.38 | ||||
| 120000 | 84.8 | 397 | 0.34 | ||||
| 150000 | 100.2 | 472 | 0.30 | ||||
| 180000 | 112.5 | 532 | 0.25 | ||||
110kV Class Three-phase On-load tap-changing Electric Power Transformer
Specification of rectifier transformer could be customerized.
Frequently Asked Question (FAQ)
Q: About the company
A: Westhomes® is a professional manufacturer for low voltage and high voltage electrical products with a thirty-year history.
Main supplier of state-owned companies like China Stae Grid, China Southern Power Grid through bidding with bunches of test certificates, sales records and operation performance to support.
Enough investment for research and development for the products innovation.
Q: About Warranty
A: 18 months from the date of receivement
Q: About shipment method
A: Depends on the required quantity and delivery urgency, both international express like UPS / DHL / EMS / HK EMS / FedEx / TNT (door to door service) and normal sea shipping & air freight also avaliable.
Q: About MOQ
A: Upto the client
Q: About payment method
A: We accept T/T, Paypal, Western union, L/C. Normally 30% payment in advance, 70% before delivery.
Q:About ordering process
A: First to send an inquiry via made-in-china platform or directly to the contact e-mail address. All the following thing is the communication between us.
Contact
Ms Stephanie Huang
Senior Sales Manager
Add: Liushi Town, Yueqing City, Zhejiang Provine, China 325604
http://westhomes.en.made-in-china.com/
Mob: 0086-13868328363
