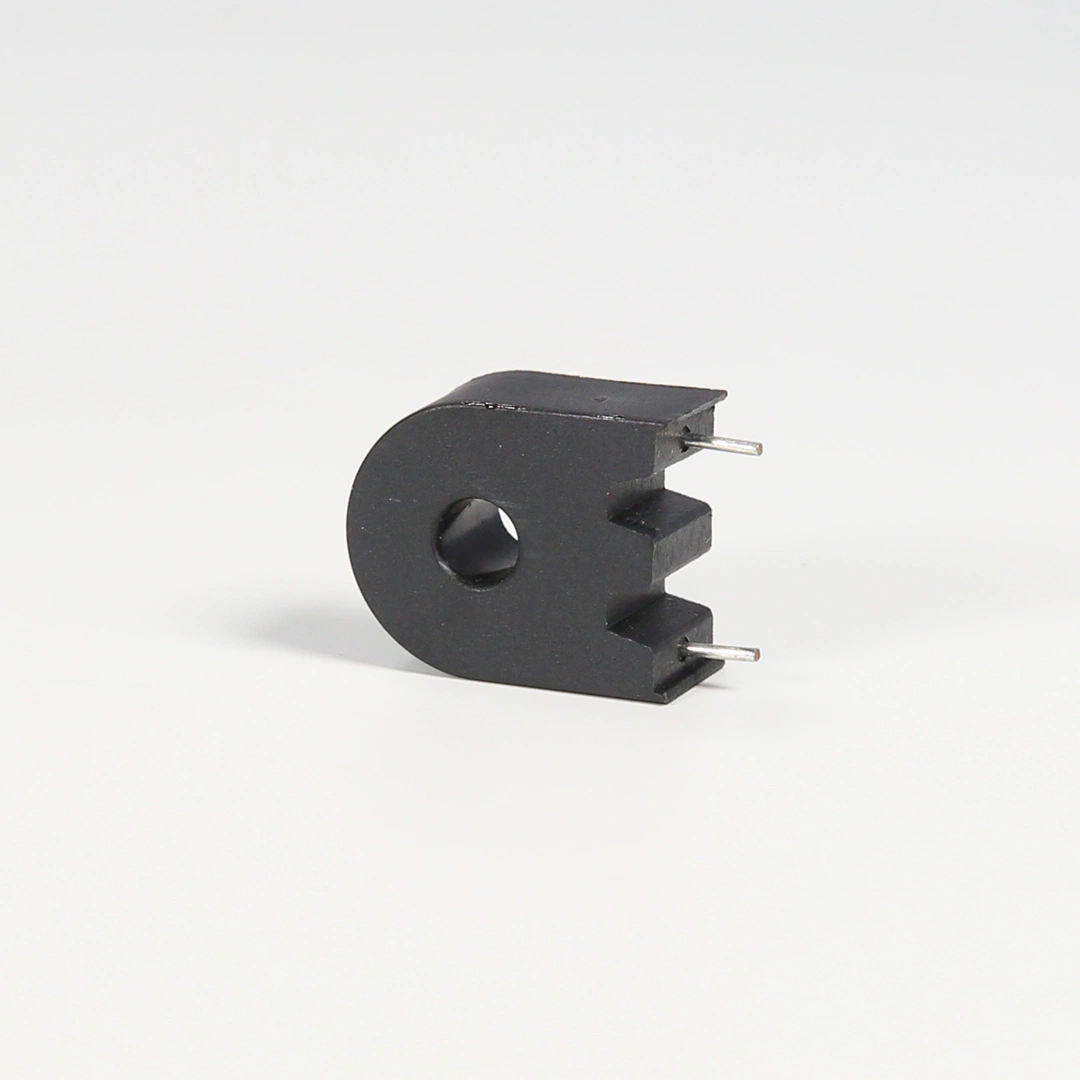

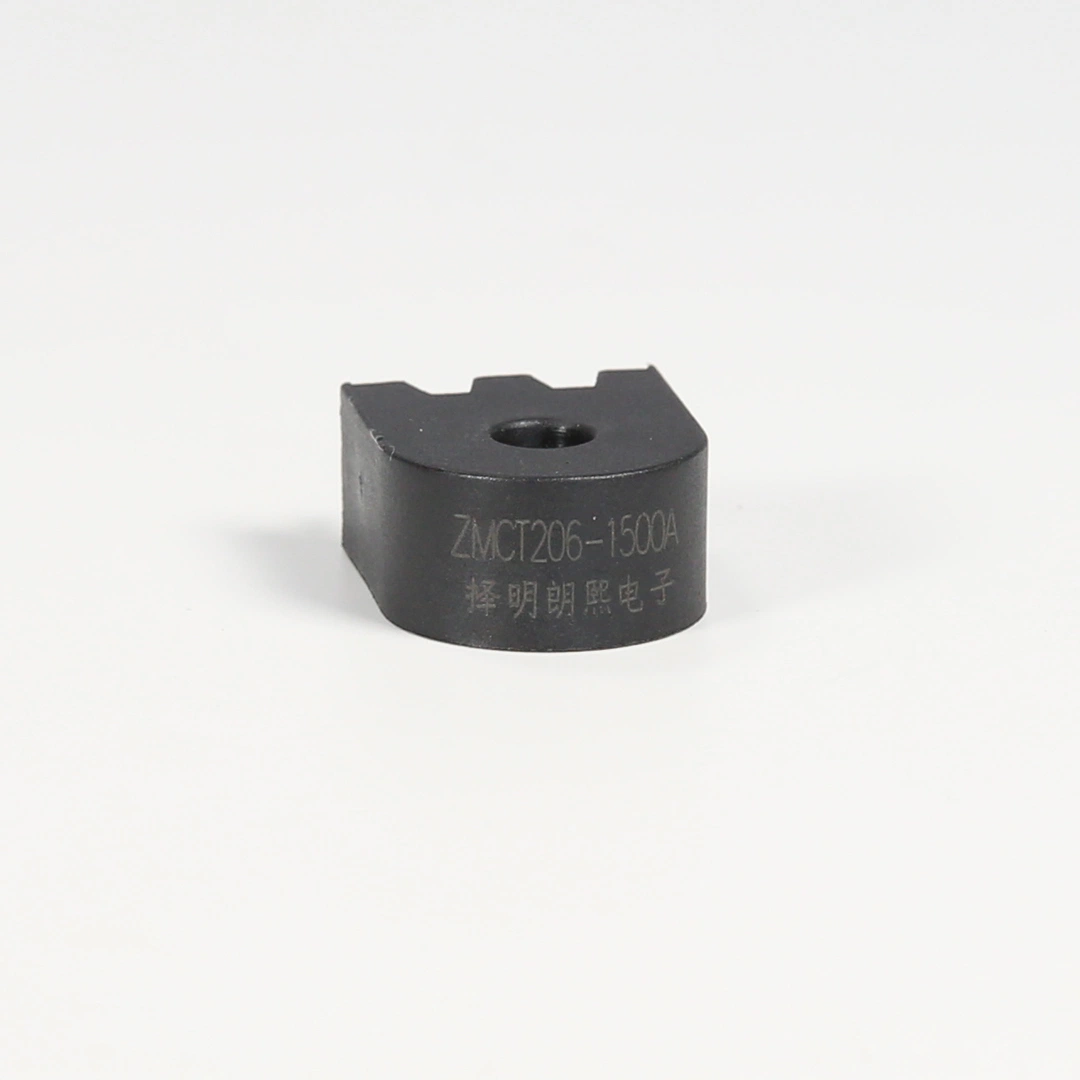

ZMCT206-500 Current Transformer
MECHANICAL DIMENSIONS
CIRCUIT SCHEMATIC:
FEATURES
Frequency range from 20 kHz~200 kHz
Primary current rating to 15Amps
Primary to secondary isolated to 2500 VAC
Approx weight: 5.3g
Operating free air temperature range : -40ºC to 85ºC
Storage temperature range : -40ºC to 125ºC
Primary current rating to 15Amps
Primary to secondary isolated to 2500 VAC
Approx weight: 5.3g
Operating free air temperature range : -40ºC to 85ºC
Storage temperature range : -40ºC to 125ºC
SELECTION GUIDE
| Order Code | Number Of Turns | Pulse V sec x t max @ Frequency | L sec mH min@ Secondary inductance tested | R sec Ω max | Typical load Ω max |
| ZMCT206-500 | 500 | 700V.μS 20kHz~200 kHz | 700mH@10kHz.1V | 25 | 500 |
MECHANICAL DIMENSIONS
CIRCUIT SCHEMATIC:
APPLICATIONS:
Isolated current feed-back signal in switch mode power supplies
Isolated bi-directional current sensor with full wave bridge rectifier
Isolated current feed-back signal in switch mode power supplies
Isolated bi-directional current sensor with full wave bridge rectifier
