5A input 3000:1 turns ratio high precision miniature current transformer

Product Description  1.Product pictures 2.Features:Low costMore than 50 standard sizesNon-symmetrical mounting patternToroidal Silicon steel and Nickel Alloy available3.ApplicationsFor applications that require exceptional accuracy with minimal phase angle errorApplications would include Voltage,power and ene

Featured Products

Product Description

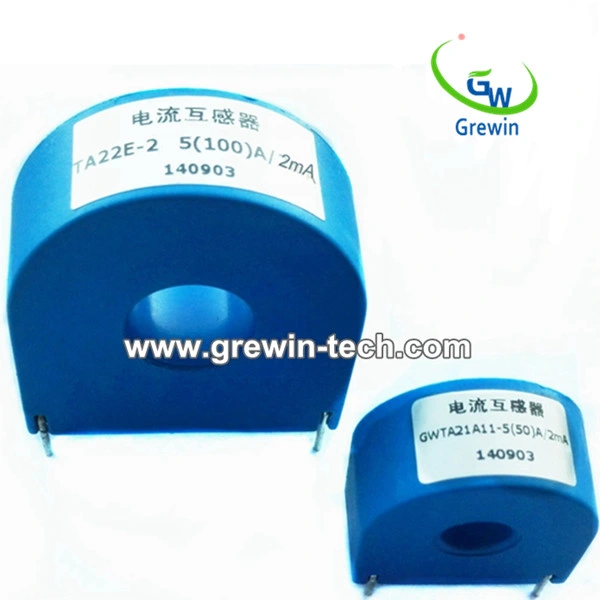

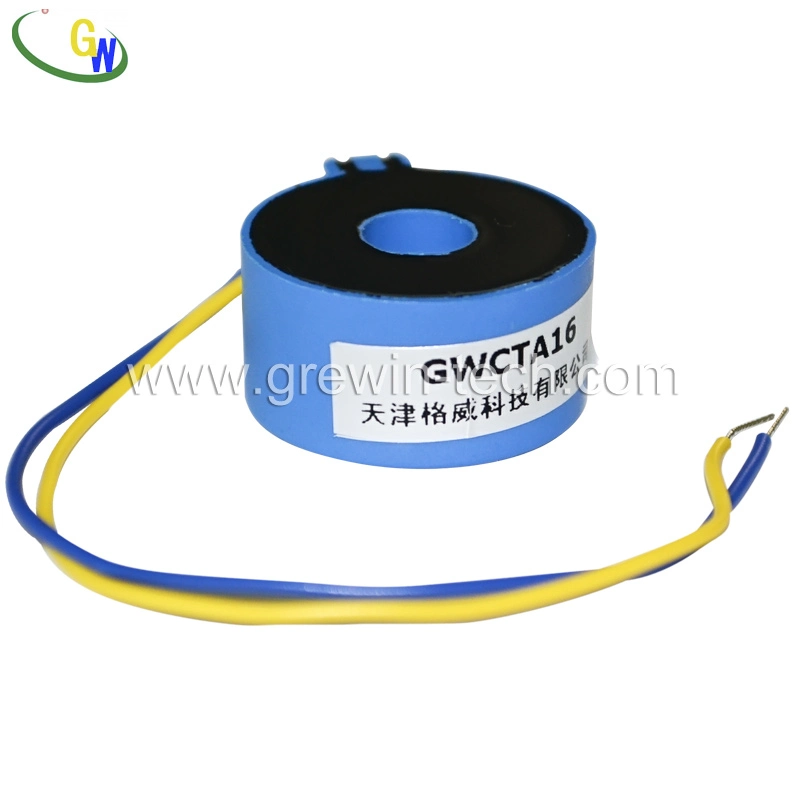

  1.Product pictures

5A Input 3000: 1 Turn Ratio High Precision Mini Current Transformer
5A Input 3000: 1 Turn Ratio High Precision Mini Current Transformer





5A Input 3000: 1 Turn Ratio High Precision Mini Current Transformer
2.Features:
Low cost
More than 50 standard sizes
Non-symmetrical mounting pattern
Toroidal Silicon steel and Nickel Alloy available


3.Applications
For applications that require exceptional accuracy with minimal phase angle error
Applications would include Voltage,power and energy monitoring devices

4.Specifications
Exterior MaterialPBT Resin UL flame retardant rating 94-V0
Interior InsulationEpoxy Encapsulated
Isolation Voltage2500 Vrms for 1 minute
Dielectric Resistance1000 M Ohms @ 500 Vdc
Surge Withstand5000V(1.2/50μs standard  shock wave)optional
Rated Load Resistance100K Ohms
Operating Temperature-25 to +55ºC,-40 to +85ºCoptional
Frequency50 to 400 Hz
Accuracy Classdefined in IEC 60044-1 Part 1 Voltage Transformers Class 0.1 0.2
CertificationRoHS Compliant CE Approved


5.Typical Impedance Dependence of Phase and Amplitude Errors (Test temperature 25º C)

5A Input 3000: 1 Turn Ratio High Precision Mini Current Transformer

6.outline drawings
5A Input 3000: 1 Turn Ratio High Precision Mini Current Transformer
5A Input 3000: 1 Turn Ratio High Precision Mini Current Transformer
7.Performances
Part
Number
Rated
Input
Current
(A)
Turn
Ratio
Frequency
( Hz )
Secondary
Burden
Resistance
(Ohms)
Accuracy
Class
Outline Dimensions (mm)
GWTA11115~301000:1
2000:1
2500:1
50 to 400≤2000.1
0.2
0.5
ID-L-W-H
7.0-22.0-18.0-23.0
GWTA13115~80≤8000.1
0.2
0.5
ID-L-W-H
8.0-25.3-18.0-30.0
GWTA14115~80≤8000.1
0.2
0.5
ID-L-W-H
9.0-31.5-20.5-33.5
GWTA21A115~501000:1
2000:1
2500:1
3000:1
50 to 400≤2000.1
0.2
0.5
ID-L-W-H
6.9-25.0-11.6-26.5
GWTA21B115~50≤2000.1
0.2
0.5
ID-L-W-H
6.7-23.5-11.5-25.0
GWTA21CB115~151000:1
2000:1
50 to 400≤500.2
0.5
ID-L-W-H
3.6-18.0-10.0-19.0
GWTA21CE11≤50ID-L-W-H
5.0-17.0-9.2-16.7
GWTA21CD11≤50ID-L-W-H
5.0-18.0-10.0-19.0
GWTA21C111000:1
2000:1
2500:1
≤50ID-L-W-H
4.5-18.0-10.0-20.0
GWTA21CA11≤300ID-L-W-H
4.5-19.0-12.5-19.0
GWTA21E115~20≤2000.1
0.2
0.5
ID-L-W-H
5-21-13.5-21.5
GWTA21F115~301000:1
2000:1
2500:1
3000:1
≤2000.2
0.5
ID-L-W-H
6.7-23.9-12-25
GWTA22B115~801000:1
1500:1
2000:1
2500:1
3000:1
50 to 400≤8000.1
0.2
0.5
ID-L-W-H
8.7-26-17.5-27.5
GWTA22D115~100≤10000.1
0.2
0.5
ID-L-W-H
9.0-29.5-19.0-30
GWTA22E115~100≤10000.1
0.2
0.5
ID-L-W-H
12.8-36.7-14.2-38.5
GWTA23115~201000:1
2000:1
2500:1
50 to 400≤2000.1
0.2
ID-L-W-H
5.0-18.8-17.8-19.5
GWTA23B115~801000:1
2000:1
2500:1
3000:1
5000:1
≤1000.1
0.2
0.5
ID-L-W-H
6.0-25.0-21.5-26.0
GWTA23A115~100≤10000.1
0.2
0.5
ID-L-W-H
6.0-34.0-22.0-36.0
GWTA32B115~201000:1
2000:1
2500:1
50 to 400≤1000.1
0.2
ID-L-W-H
5-17.6-19.3-17.6
GWTA33115~801000:1
1500:1
2000:1
2500:1
3000:1
≤5000.1
0.2
0.5
ID-L-W-H
6.0-28.0-28.0-22.0
GWTA34B115~100≤10000.1
0.2
0.5
ID-L-W-H
5.5-34.0-34.0-23.0


8.outline dimensions
