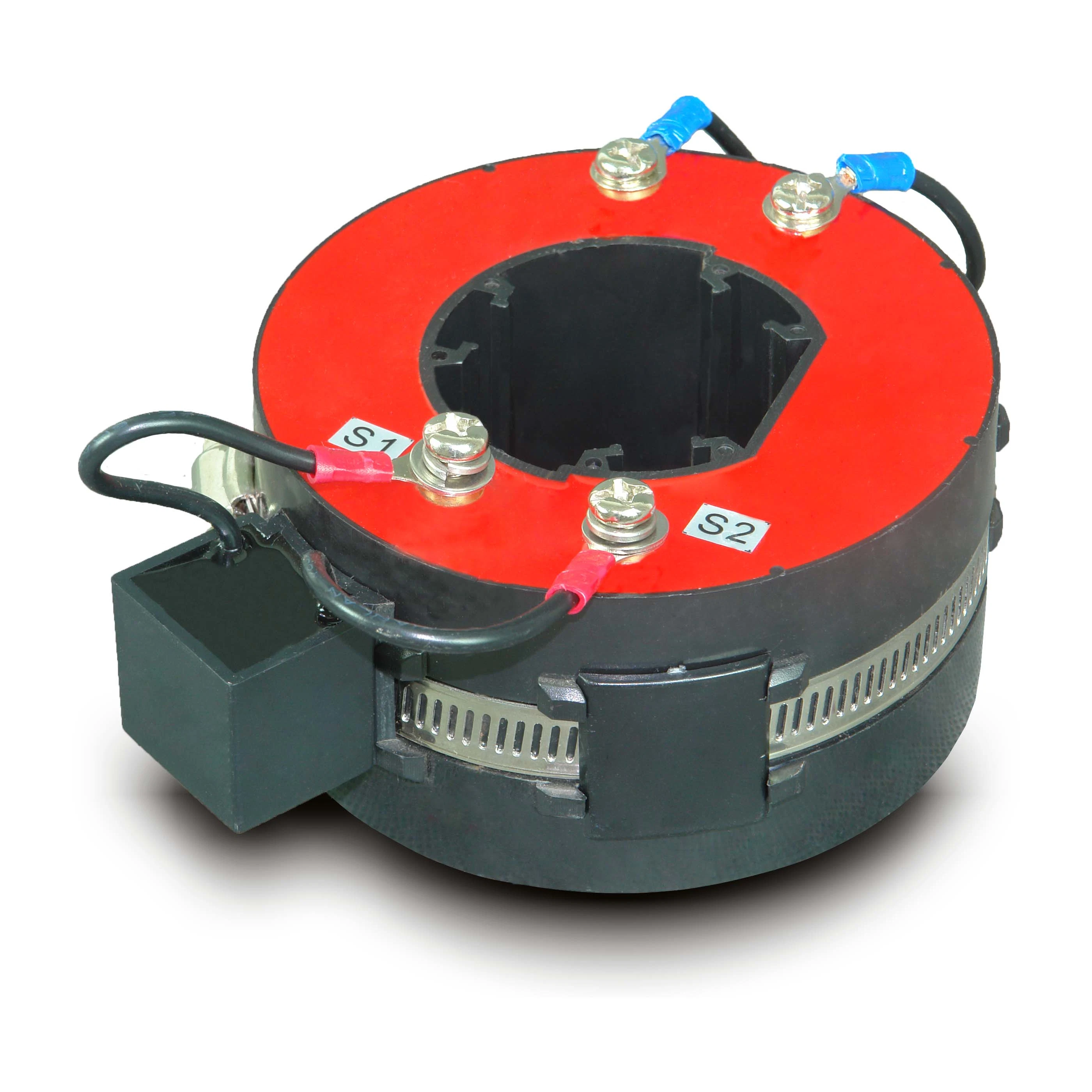

AMK(I)6-35 OPEN CORE
CURRENT TRANSFORMERS
TECHNICAL DATA
It is suitable for 35KV power systerm,the primary main insulation is ensured by cables.
The products accord with the standards of IEC60044-1:2003 and some special demands.
Rated voltage 0.5KV
Rated frequency 50HZ
Rated secondary current 5or 1A
Ambient temperature -5 ºC - +40ºC
Note: If user's data go beyond the above mentioned scopes, they maybe subject to an agreement between manufacturer and purchaser.
CURRENT TRANSFORMERS
TECHNICAL DATA
It is suitable for 35KV power systerm,the primary main insulation is ensured by cables.
The products accord with the standards of IEC60044-1:2003 and some special demands.
Rated voltage 0.5KV
Rated frequency 50HZ
Rated secondary current 5or 1A
Ambient temperature -5 ºC - +40ºC
| Rated transformation ratio(A) | Accuracy classes -Rated output(AV) | |||
| 0.2 | 0.5 | 10P10 | 10P5 | |
| 30/1~100/1 | 2.5 | 1~3 | ||
| 150/1~300/1 | 2.5~3 | 2~3 | 3~5 | |
| 400/1~600/1 | 3.5~7.5 | 3.5~7.5 | 5~7.5 | |
| 100/5~300/5 | 2.5~5 | 1~2 | 2.5~3.75 | |
| 400/5~600 | 1~2.5 | 7.5~10 | 5~7.5 | 10~15 |
