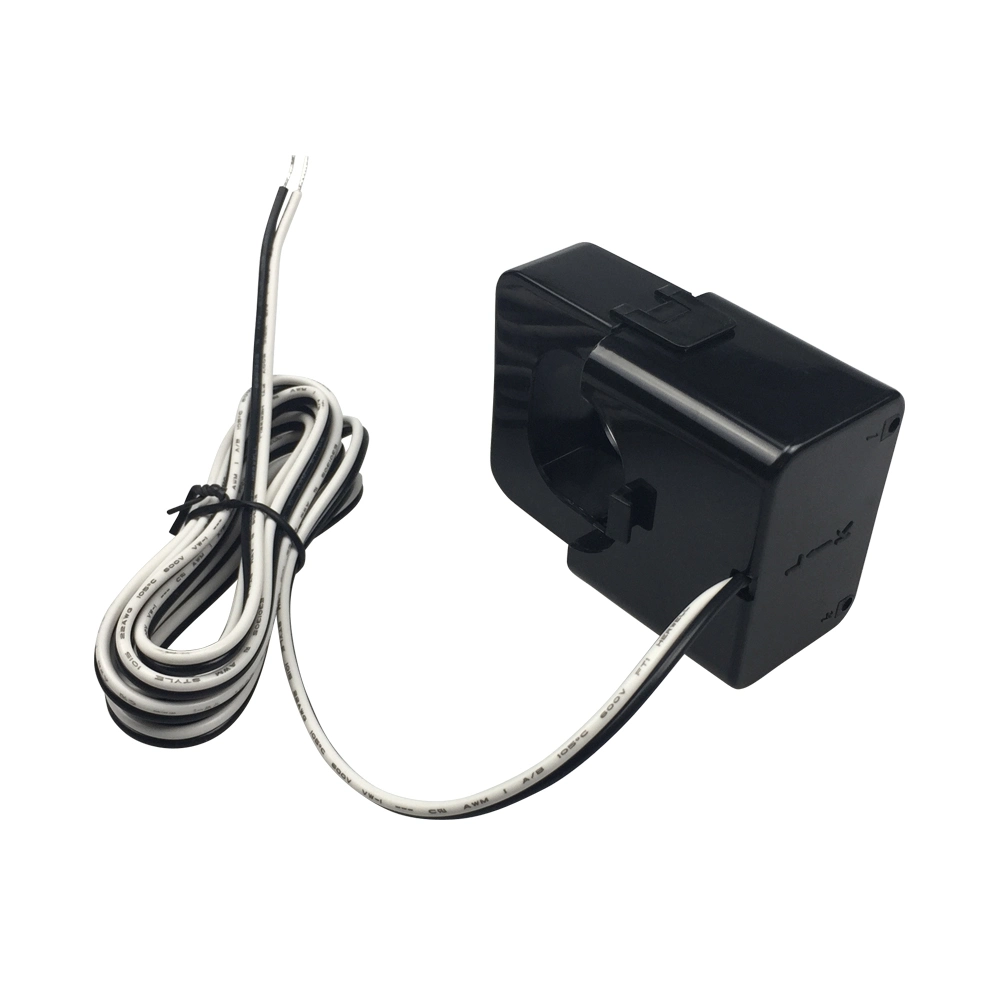

Echun 600A/20mA Current Ratio Split Core Current Transformer for Power Instrument & Protection

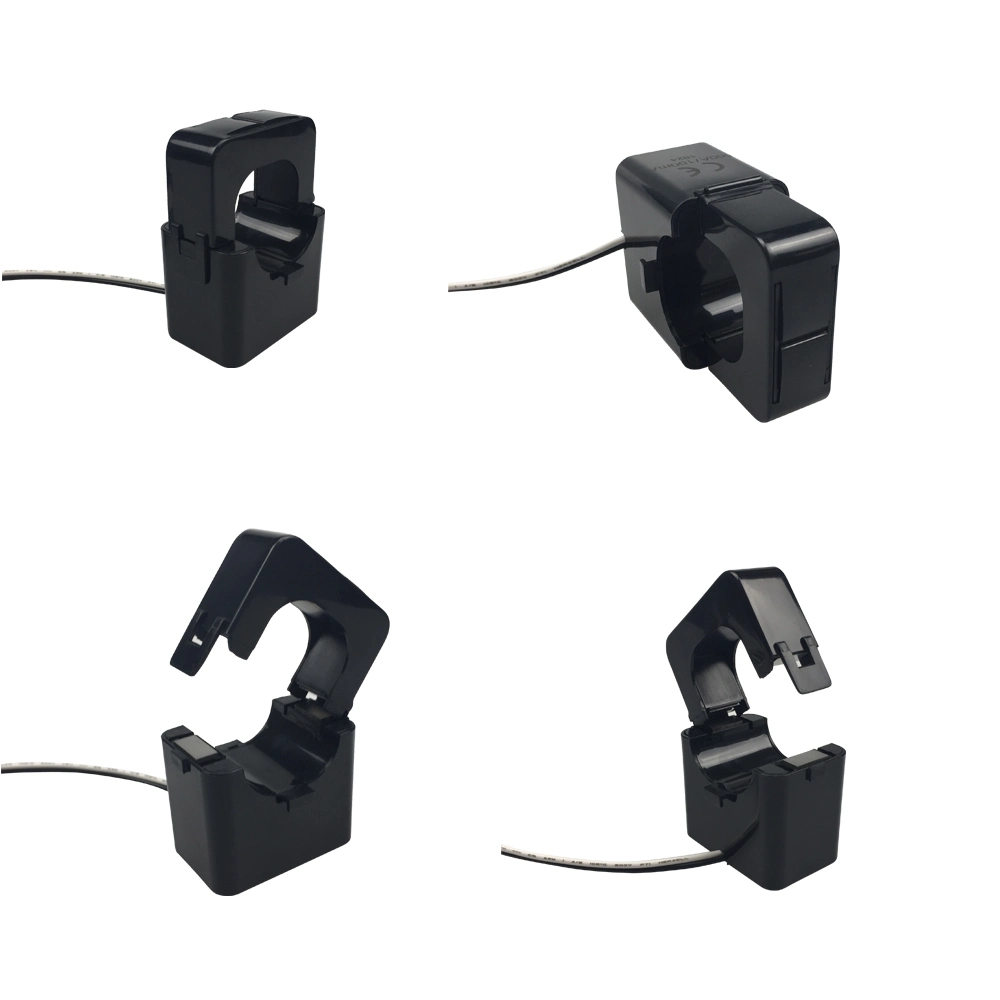

The ECS36 Series are split-core current transformers. The CT can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage. These CTs can be mounted without removing existing cables for easier installation.
The ECS36 Series are split-core current transformers. The CT can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage. These CTs can be mounted without removing existing cables for easier installation.
------------------------------------------------------------------------------------------------------------------------------------------
Product Parameter
NO. 1. Electrical Specifications Product Parameter
| Rated Primary Current(Amp. ) 50/60Hz | 600nom(0.1 ~ 720A max. ) |
| Turn Ratio | Np: Ns= 1: 30000 |
| Current Ratio | 600A/20mA |
| D. C. Resistance at 20ºC (Ω) | 7.5KΩ±10% |
| Accuracy @RL=10Ω | 0.50% |
| Protection Level | 7.5Vo (Peak) |
| Phase Error at Rated Current Range | ≤0.5° |
| Operating Temperature Range | -40 ~ +70ºC |
| Storage Temperature Range | -45 ~ +85ºC |
| Dielectric Withstanding Voltage | 2.5KV/1mA/1min |
| Impluse Withstand Voltage | 5KV Peak |
| Insulation Resistance | DC500V/100MΩ min |
No. 2. Part Number
| Part Number | Input Current | Available Output | ||||
| ECS36-100 | 100A | Current Outputs/ 20mA, 33.3mA,40mA,50mA,100mA,1A,5A. Voltage Outputs/ 0.25V,0.333V,0.5V,1V,2V. | ||||
| ECS36-200 | 200A | |||||
| ECS36-300 | 300A | |||||
| ECS36-400 | 400A | |||||
| ECS36-500 | 500A | |||||
| ECS36-600 | 600A | |||||
------------------------------------------------------------------------------------------------------------------------------------------
Structure & Dimensions
------------------------------------------------------------------------------------------------------------------------------------------
Applications
1. Current measurement
2. Monitoring & protecttion
3. Energy & sub-metering products
4. Network equipment
5. Instruments & sensors
6. Control systems
