Product Description
single pahse din rail energy meter with split core open ct clamps is suitable for power monitoring of grid-connected PV power
Functions and parameters
Functions and parameters of ACR10R-D16TE
Dimensions and Wirings
It is recommended to use 0.5A or 3A for the fuse in the connection diagram;
RS485 communication terminal connection can use either RJ45 female or normal connector
Applications and Solutions
Reverse power alarm ,zero export meter device
Certifications
About ACREL
Professional manufacturer with over 18 years experience in energy meters
FAQ
Q:Where is your company located?
A:Our headquarter is in Shanghai, our factory locates in Jiangyin,Jiangsu Province,China.It takes about 1 hour by car from Shanghai Hongqiao International Airport to our factory. As it is low labor cost here in Jiangsu,we can offer a better price with high quality.
A:Our headquarter is in Shanghai, our factory locates in Jiangyin,Jiangsu Province,China.It takes about 1 hour by car from Shanghai Hongqiao International Airport to our factory. As it is low labor cost here in Jiangsu,we can offer a better price with high quality.
Q:What's your lead time?
A:Sample time 1-3days,mass production 10~20days for order more than 500pcs
Q:Payment terms?
A:Usually,TT,credit card,western union,in cash and so on.You can also choose to pay 30% as deposit and the balance before shipment or against copy of B/L if the order is large.
Q:Can other logo be put on your products(ODM)?
A:Yes,but MOQ for ODEM will be at least 100pcs.We also need you provide logo Ai Format or EPS.
ACR10R single phase energy power meter with current transformer for solar storage system
single pahse din rail energy meter with split core open ct clamps is suitable for power monitoring of grid-connected PV power
station,power demand side management and other applications.
It is easy to install without removing primary bus bar and cost-effective.
It can measure electrical parameters including current,voltage, active power,reactive power,apparent power,frequency,power factor
and so on.
and so on.
It supports multi-tariff energy metering,4 quadrant energy metering,harmonic analyse and energy monitoring.
Circuit breaker switch 'remote signaling' and 'remote controlling' can be realized with digital input and relay output.
Functions and parameters
Functions and parameters of ACR10R-D16TE
*Bidirectional energy meter
*Input:220V 120A current
*Input:220V 120A current
*Refresh rate:250ms or 200ms
*Communication:RS485 modbus-RTU
*Communication:RS485 modbus-RTU
*Switching value input and relay output
*Optional functions:
*Optional functions:
refering to below Data sheet
ACR10R-D16TE single phase energy meter with CTs clamps 16mm | ||
Network | 3 phase 4 wire LCD display | |
voltage | measuring range | AC 220V |
power consumption | ≤0.2VA | |
current | measuring range | 120A |
power consumption | ≤0.2VA | |
frequency | 45hz-65hz | |
Meauring parameters | Current,voltage,frequeny and power factor | |
active power,reactive power and apparent power | ||
four quadrant energy | ||
Optional functions | Total harmonic distortion(THD) | |
Up to the 31st harmonic | ||
Max demand | ||
Multi-tariff energy metering | ||
SOE record | ||
Alarm | ||
in-built clock | ||
J(2DO) | J,K,2 channel pulse,4DI+2DO or 4DI+EP | |
K(4DI) | ||
Pulse(2 channel) | ||
Accuracy | Frequency:0.05hz ,reactive energy:1 current,voltage:0.5 | |
Power supply | AC85-265V or DC100-350V;DC24V(±10%);DC48V(±10%) power consumption≤10VA | |
switching value input | 4 circuit dry contact | |
relay output | 2 NO contact,capacity:AC 250V/3A,DC 30V/3A | |
environment | working temperature | -10ºC-55ºC |
storage temperature | -20ºC-70ºC | |
relative humudity temperature | ≤93%(non-condensing) | |
altitude | ≤2500m | |
Communication | RS485,Modbus-RTU |

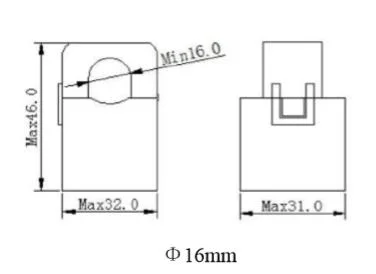

Dimensions and Wirings
It is recommended to use 0.5A or 3A for the fuse in the connection diagram;
RS485 communication terminal connection can use either RJ45 female or normal connector
Applications and Solutions
Reverse power alarm ,zero export meter device
Certifications
About ACREL
Professional manufacturer with over 18 years experience in energy meters
