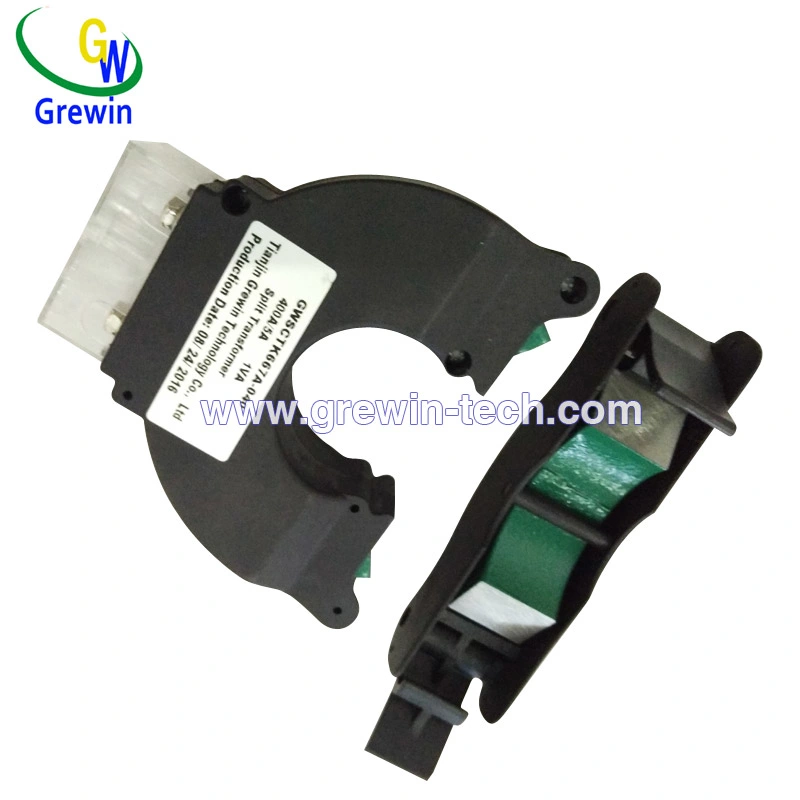

Current Transformer Core CT Sensor Split Transformer CT with ETL CB

PRODUCT :current transformer split core ct split core  with ETL CB Accuracy class: 0.5 1.0SRated accuracy limit primary current: 600AProtection : 5 times Protection, 10 times protectionFrequency: 50--400HzA2. Split Core Current Transformers \\mA or 0.333-3.53V Rated Secondary Output 1.Applications: Curre

Featured Products

PRODUCT :current transformer split core ct split core  with ETL CB
Current Transformer Core CT Sensor Split Transformer CT with ETL CB

Current Transformer Core CT Sensor Split Transformer CT with ETL CB
Current Transformer Core CT Sensor Split Transformer CT with ETL CB


Current Transformer Core CT Sensor Split Transformer CT with ETL CB
Current Transformer Core CT Sensor Split Transformer CT with ETL CB


Current Transformer Core CT Sensor Split Transformer CT with ETL CB
Current Transformer Core CT Sensor Split Transformer CT with ETL CB
Current Transformer Core CT Sensor Split Transformer CT with ETL CB
Current Transformer Core CT Sensor Split Transformer CT with ETL CB
Current Transformer Core CT Sensor Split Transformer CT with ETL CBCurrent Transformer Core CT Sensor Split Transformer CT with ETL CB

 Accuracy class: 0.5 1.0S
Rated accuracy limit primary current: 600A
Protection : 5 times Protection, 10 times protection
Frequency: 50--400Hz

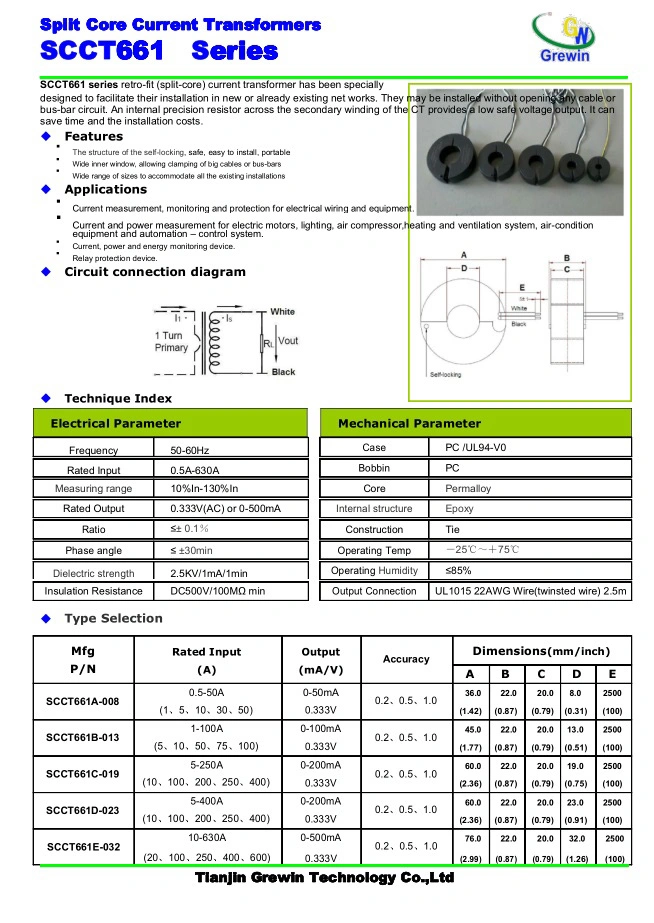

A2. Split Core Current Transformers \mA or 0.333-3.53V Rated Secondary Output
1.Applications:
 Current, power, energy, monitoring devices;Relay protection devices;Power Factor Correction devices.
2. Specifications:Rated Primary current: 100-5000Aac;Rated Secondary current:5 or 1Aac;Rated load: 1, 2.5, 5.0, 10, 30VA;Accuracy: 0.5, 1.0, 3.0 Class;
3.Rated Short-time thermal current (Ith):20In
Rated Dynamic current (Idyn):2.5Ith;
Case Material: UL flame retardant rating 94-V0;
Highest Voltage for Equipment Um (rms):720 Vac;
Rated Power-Frequency Withstand Voltage;(rms):3,000 Vac
Frequency Range:50/60Hz;Operating Temperature: -15 to degree;
Standard:IEC 60044-1 .
Other  current transformer :



The following pictures show you about all finished current transformers in the warehouse which are waiting for packing into boxes. And then they will be packed into export standard cartons with strong pallets so that can make sure the goods safe arrival at your destination place.

 About us:
Tianjin Grewin Technology Co.,ltd. has always laying great emphasis on our core
business philosophy "Quality and Honesty First ".


Our strongly advantages as below:

 1.    Our transformer quality lifetime: 10 Years.
2.     Specialty Sales service: 5 -10 Years
3.    Proficient experience workers on average:Around 5 Years.
4.    Equipments:Advanced winding machines imported from Italy.
5.    Test: 100% test before the shipment

Related Transformer range:
Current Transformer Core CT Sensor Split Transformer CT with ETL CB

Contact Information:



TIANJIN GREWIN TECHNOLOGY CO.,LTD
Add:Meinian Plaza.No.16 Dongting Road,Hexi Distr,Tianjin,China .
Tel: +86-22-84943756
Web: transformer.en.made-in-china.com






Contact us

Please feel free to give your inquiry in the form below We will reply you in 24 hours
